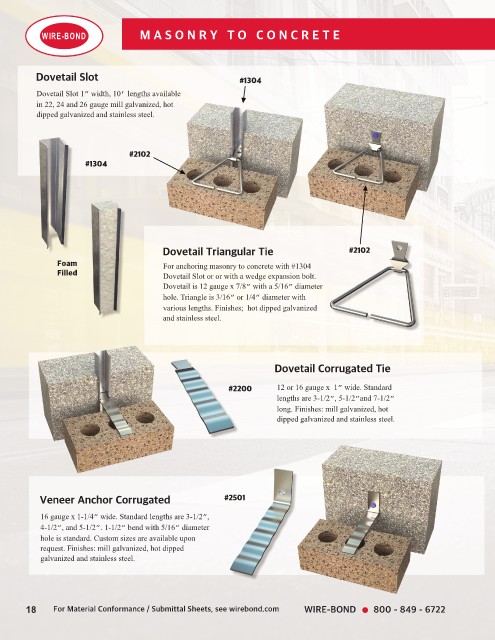

WIRE-BOND M A S O N R Y T O C O N C R E T E

Dovetail Slot #1304

Dovetail Slot 1” width, 10’ lengths available
in 22, 24 and 26 gauge mill galvanized, hot
dipped galvanized and stainless steel.

#2102
#1304

Dovetail Triangular Tie #2102
Foam For anchoring masonry to concrete with #1304
Filled Dovetail Slot or or with a wedge expansion bolt.
Dovetail is 12 gauge x 7/8” with a 5/16” diameter
hole. Triangle is 3/16” or 1/4” diameter with
various lengths. Finishes; hot dipped galvanized
and stainless steel.

Dovetail Corrugated Tie

#2200 12 or 16 gauge x 1” wide. Standard
lengths are 3-1/2”, 5-1/2”and 7-1/2”
long. Finishes: mill galvanized, hot
dipped galvanized and stainless steel.

Veneer Anchor Corrugated #2501

16 gauge x 1-1/4” wide. Standard lengths are 3-1/2”,
4-1/2”, and 5-1/2”. 1-1/2” bend with 5/16” diameter
hole is standard. Custom sizes are available upon
request. Finishes: mill galvanized, hot dipped
galvanized and stainless steel.

18 For Material Conformance / Submittal Sheets, see wirebond.com WIRE-BOND 800 - 849 - 6722
