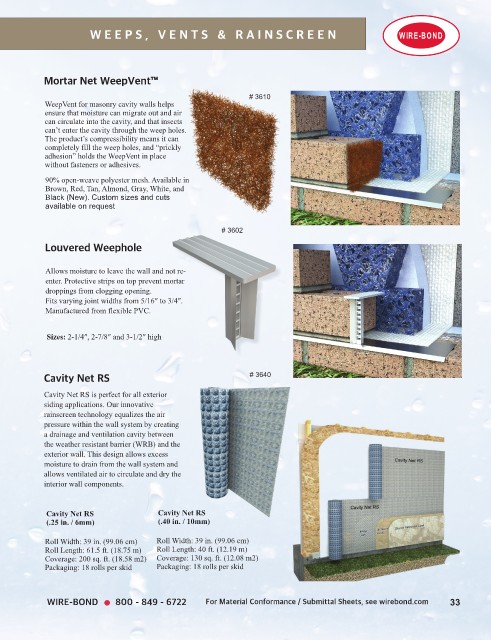

Page 33 - WIRE-BOND Products Catalog

W E E P S , V E N T S & R A I N S C R E E N WIRE-BOND

Mortar Net WeepVent™

# 3610
WeepVent for masonry cavity walls helps
ensure that moisture can migrate out and air
can circulate into the cavity, and that insects
can’t enter the cavity through the weep holes.
The product’s compressibility means it can
completely fill the weep holes, and “prickly
adhesion” holds the WeepVent in place
without fasteners or adhesives.
90% open-weave polyester mesh. Available in
Brown, Red, Tan, Almond, Gray, White, and
Black (New). Custom sizes and cuts
available on request

# 3602

Louvered Weephole

Allows moisture to leave the wall and not re-
enter. Protective strips on top prevent mortar
droppings from clogging opening.
Fits varying joint widths from 5/16″ to 3/4″.
Manufactured from flexible PVC.

Sizes: 2-1/4″, 2-7/8″ and 3-1/2″ high

Cavity Net RS # 3640

Cavity Net RS is perfect for all exterior
siding applications. Our innovative
rainscreen technology equalizes the air
pressure within the wall system by creating
a drainage and ventilation cavity between
the weather resistant barrier (WRB) and the
exterior wall. This design allows excess
moisture to drain from the wall system and
allows ventilated air to circulate and dry the
interior wall components.

Cavity Net RS Cavity Net RS
(.25 in. / 6mm) (.40 in. / 10mm)

Roll Width: 39 in. (99.06 cm) Roll Width: 39 in. (99.06 cm)
Roll Length: 61.5 ft. (18.75 m) Roll Length: 40 ft. (12.19 m)
Coverage: 200 sq. ft. (18.58 m2) Coverage: 130 sq. ft. (12.08 m2)
Packaging: 18 rolls per skid Packaging: 18 rolls per skid

WIRE-BOND 800 - 849 - 6722 For Material Conformance / Submittal Sheets, see wirebond.com 33
