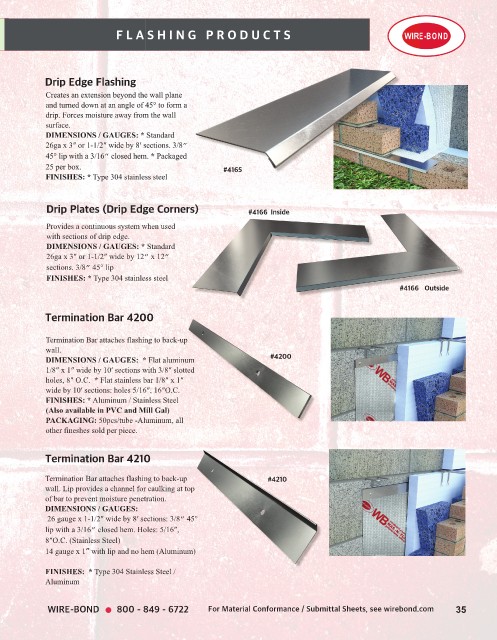

Page 35 - WIRE-BOND Products Catalog

F L A S H I N G P R O D U C T S WIRE-BOND

Drip Edge Flashing

#4165

Drip Plates (Drip Edge Corners) #4166 Inside

Provides a continuous system when used
with sections of drip edge.
DIMENSIONS / GAUGES: * Standard
26ga x 3″ or 1-1/2″ wide by 12” x 12”
sections. 3/8” 45° lip
FINISHES: * Type 304 stainless steel
#4166 Outside

Termination Bar 4200

Termination Bar attaches flashing to back-up
wall.
DIMENSIONS / GAUGES: * Flat aluminum #4200
1/8″ x 1″ wide by 10′ sections with 3/8″ slotted
holes, 8″ O.C. * Flat stainless bar 1/8″ x 1″
wide by 10′ sections: holes 5/16″, 16″O.C.
FINISHES: * Aluminum / Stainless Steel
(Also available in PVC and Mill Gal)
PACKAGING: 50pcs/tube -Aluminum, all
other fineshes sold per piece.

Termination Bar 4210

Termination Bar attaches flashing to back-up #4210
wall. Lip provides a channel for caulking at top
of bar to prevent moisture penetration.

DIMENSIONS / GAUGES:
26 gauge x 1-1/2″ wide by 8′ sections: 3/8” 45°
lip with a 3/16” closed hem. Holes: 5/16″,
8″O.C. (Stainless Steel)
14 gauge x 1” with lip and no hem (Aluminum)

FINISHES: * Type 304 Stainless Steel /
Aluminum

WIRE-BOND 800 - 849 - 6722 For Material Conformance / Submittal Sheets, see wirebond.com 35
