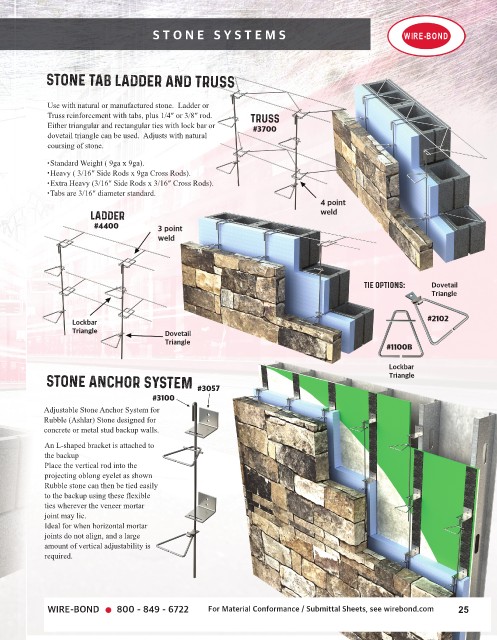

Page 25 - WIRE-BOND Products Catalog

S T O N E S Y S T E M S WIRE-BOND
WIRE-BOND

Stone Tab Ladder and Truss

Use with natural or manufactured stone. Ladder or
Truss reinforcement with tabs, plus 1/4″ or 3/8″ rod. Truss
Either triangular and rectangular ties with lock bar or #3700
dovetail triangle can be used. Adjusts with natural
coursing of stone.
Standard Weight ( 9ga x 9ga).
Heavy ( 3/16″ Side Rods x 9ga Cross Rods).

Extra Heavy (3/16″ Side Rods x 3/16″ Cross Rods).
Tabs are 3/16″ diameter standard.
4 point
Ladder weld
#4400 3 point

weld

Tie Options: Dovetail
Triangle

#2102
Lockbar
Triangle Dovetail
Triangle
#1100B

Lockbar
Stone Anchor System Triangle
#3057
#3100
Adjustable Stone Anchor System for
Rubble (Ashlar) Stone designed for
concrete or metal stud backup walls.

An L-shaped bracket is attached to
the backup
Place the vertical rod into the
projecting oblong eyelet as shown
Rubble stone can then be tied easily
to the backup using these flexible
ties wherever the veneer mortar
joint may lie.
Ideal for when horizontal mortar
joints do not align, and a large
amount of vertical adjustability is
required.

WIRE-BOND 800 - 849 - 6722 For Material Conformance / Submittal Sheets, see wirebond.com 25
