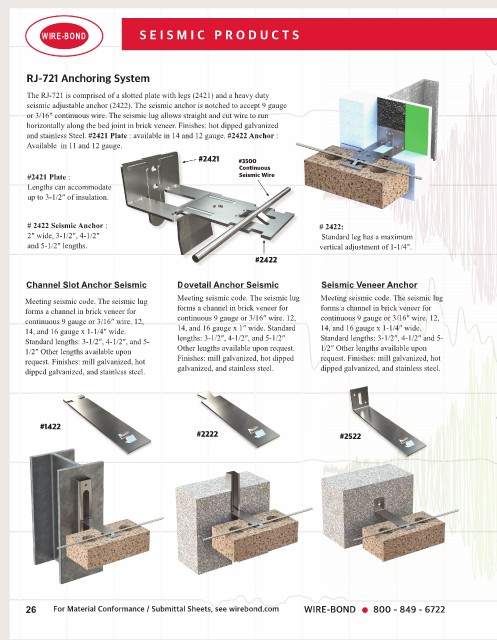

Page 26 - WIRE-BOND Products Catalog

S E I S M I C P R O D U C T S
WIRE-BOND S E I S M I C P R O D U C T S

RJ-721 Anchoring System

The RJ-721 is comprised of a slotted plate with legs (2421) and a heavy duty
seismic adjustable anchor (2422). The seismic anchor is notched to accept 9 gauge
or 3/16″ continuous wire. The seismic lug allows straight and cut wire to run
horizontally along the bed joint in brick veneer. Finishes: hot dipped galvanized
and stainless Steel. #2421 Plate : available in 14 and 12 gauge. #2422 Anchor :
Available in 11 and 12 gauge.
#2421 #3500
Continuous
#2421 Plate : Seismic Wire
Lengths can accommodate
up to 3-1/2″ of insulation.

# 2422 Seismic Anchor : # 2422:
2″ wide, 3-1/2″, 4-1/2″ Standard leg has a maximum
and 5-1/2″ lengths. vertical adjustment of 1-1/4″.

#2422

Channel Slot Anchor Seismic Dovetail Anchor Seismic Seismic Veneer Anchor
Meeting seismic code. The seismic lug Meeting seismic code. The seismic lug Meeting seismic code. The seismic lug
forms a channel in brick veneer for forms a channel in brick veneer for forms a channel in brick veneer for
continuous 9 gauge or 3/16″ wire. 12, continuous 9 gauge or 3/16″ wire. 12, continuous 9 gauge or 3/16″ wire. 12,
14, and 16 gauge x 1-1/4″ wide. 14, and 16 gauge x 1″ wide. Standard 14, and 16 gauge x 1-1/4″ wide.
Standard lengths: 3-1/2″, 4-1/2″, and 5- lengths: 3-1/2″, 4-1/2″, and 5-1/2″ Standard lengths: 3-1/2″, 4-1/2″ and 5-
1/2″ Other lengths available upon Other lengths available upon request. 1/2″ Other lengths available upon
request. Finishes: mill galvanized, hot Finishes: mill galvanized, hot dipped request. Finishes: mill galvanized, hot
dipped galvanized, and stainless steel. galvanized, and stainless steel. dipped galvanized, and stainless steel.

#1422
#2222 #2522
