4160 (SA)
BOND-N-FLASH SA
Documents: 4
| Type | View Document | ||
|---|---|---|---|
| submittal | BOND-N-FLASH SA | ||
| sds | BOND-N-FLASH SA | ||
| leed | BOND-N-FLASH SA | ||

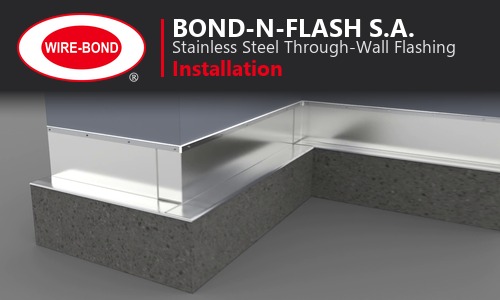

| installation | Installation |
In Categories: 2
flashing products: 26
BOND-N-FLASH SA
BOND-N-FLASH S.A. stainless steel composite flashing consists of 2 mils of stainless steel (type 304) bonded to a permanent clear (PSA) adhesive with a removable silicone coated release liner. This composite material including the release liner has a total thickness of 12 mils.
BOND-N-FLASH S.A. is a self-adhering flashing which can be appliedas low as 20 Degrees F.
When necessary, BOND-N-FLASH S.A. is to be applied a part of a system using both BOND-N-FLASH Primer and BOND-N-FLASH Mastic.
BOND-N-FLASH S.A. will bond to concrete, CMU, brick, plywood, exterior gypsum, OSB, metal and air barriers. BOND-N-FLASH S.A. is compatible with most of the insulations, air barriers, roofing membranes, asphaltic flashings and below grade waterproofing products.
- LEED – EA credit 1 and EQ credit 4.1
- 304 Stainless Steel(-25°F-125°F)
- Permanent Adhesive
- Permanent U.V. Resistance
- Fire Resistant
- Mold Resistant
- High Puncture and Tear Resistance
- Flexible for easy jobsite formation
- LIFE OF THE WALL WARRANTY
| Available widths | 12", 18", 24", and 36" |
| Roll Length | 75lf per roll |
Material:
Type 304 Stainless Steel
- Thru-Wall Flashing
- Head and Sill Flashing
- Spandrel flashing
- Roof- Parapet Flashing
- Perimeter Flashing- Curtain Wall
- Base flashing
- Transition Membrane (Waterproofing, Roofing, Air Barriers)
